Innopower “Cools” your SoC design!
Low power
consumption is critical to SoC designs, particularly for the
growing number of portable applications. Longer battery life
and use of cheaper package drive SoC designers constantly
searching for “Cool” or “Green” IPs.
Innopower's low
power IP portfolio, called Emerald Suite, includes IO,
memory compilers and miniLib+™ Cell Libraries, work
comfortably under 0.9V for 65, 55 and 40LP processes.
Emerald Suite also comes with low leakage current and low
clock tree loading. Innopower also provides low-power
interface PHY such as USB2.0, USB3.0, mDDR, mDDR2, DDR2,
DDR3, SATA 1.5/3/6G, PCI-Express 2.5/5G, 10/100 Ethernet. All these PHY are mass production proven and
industry-standard certified. By working closely with
foundries, Innopower provides “Cool” IP’s customized for
specific processes, making the low power design feasible in
many manufacturing facilities.
“Customers can
seamlessly develop their designs with our low-power IP’s to
create a complete solution and achieve maximum power
efficiency,” said Raymond Leung, Chief Technology Officer at
Innopower. “Developing competitive low-power solutions is
our long-term technical commitment to help customers
differentiate their products in their respective markets.“
Innopower’s miniLib+™ Cell
Library
Innopower’s miniLib+™ cell library uses a series of new
architectures that significantly reduce the power and
area of chip design. Compared to other high density
libraries, the miniLib+™ can help to reduce the power
consumption by about 20% to 50%. It can also achieve
about 10% to 20% in area reduction for the same design.
Innopower's miniLib+™ is now available in many foundry
processes.
Innopower’s Low-Power Memory Compiler
(Power Gating):
Innopower's synchronous Low
Power Memory compiler is optimized for very-low power
designs. It is designed with power gating feature which
offers three extra power saving modes, standby, retention,
and sleep mode. Compared to the generic-type 32K x 8 SRAM
simulated in 55 nm SP process, Innopower's low power memory
compiler (power-gating) can save an average of about 70% and
96% power in retention mode and sleep mode separately. The
timing definition and control signals of this power-gating
memory compiler are simple and easy to use.
Fig-1 The power consumption of
a 32K x8 SRAM in power saving mode
Fig-2 The power consumption of a 1K x4 SRAM in power saving
mode
Low power Ethernet PHY IP
Low power Ethernet PHY IP,
FXEDP118HP0A, is fully compliant with 100 Base-TX, 10 Base-T
PMD level standards (IEEE 802.3u, FDDI-TP-PMD and 802.3). It
is also compliant with 100Base-FX IEEE802.3u. This low
power, high integrated Ethernet PHY IP is implemented in
0.162um MMC process. It offers superior feature of power
management mode for Ethernet applications. Three power
saving modes (PS1/2/3) are provides to save significant
power when the Ethernet cable is not connected. The power
consumption in 100 Base-TX mode and 10 Base-TX mode are
300mW and 350mW separately. FXEDP118HP0A is in mass
production now.

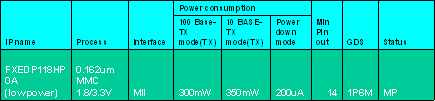

Fig-3 The power consumption of FXEDP118HP0A PHY IP
|
